FTI Finish Thompson Inc.

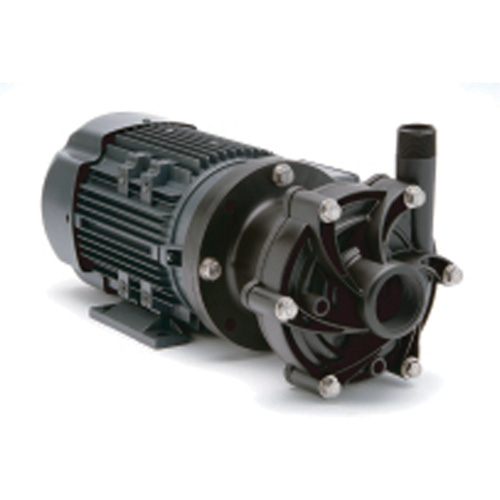

Magnetic Drive Pump with PTFE Bushing

Model: PUN306

Mfr. No.: DB8V-T-M205

  • Magnetic Drive Pump with PTFE Bushing Auto-Cam

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$2,532.60 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

Manufacturer's Warranty

  • 5 Years

Intake Size

1-1/2"

Discharge Port Size

1"

Motor

3/4 HP

Suction Head

45'

Connection Type

NPT

Impeller Size

3.63"

Magnet Type

8-Pole

Material

PVDF

Max. Flow

61 GPM

Full Load Amp

1.09 FLA

Motor Frame Size

56C

Power

208-230-460 V, 60 Hz

Country Of Origin

United States

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
