Mag-Mate

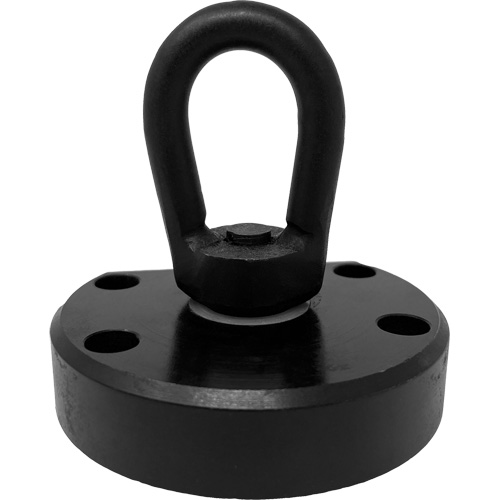

Vertical Lug Adapter for Rare Earth Advantage Lift™ Magnets

Model: UAV701

Mfr. No.: ALLUG1

  • Vertical Lug Adapter for Rare Earth Advantage Lift Magnets Auto-Cam

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$154.53 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

For Use With

  • AL0500 & AL1000 Magnets

Width

4-3/8"

Length

4-11/16"

Height

3-9/16"

Bail Thickness

1/2"

Bail Height

1-7/8"

Bail Width

1-1/2"

Weight

4 lbs.

Operating Temperature Range

-10°F (-23°C) to 180°F (82 °C)

Country Of Origin

China

  • Adapter for "on/off" permanent rare earth lift magnet
  • Locking lifting bail(s) prevents accidental load release during lift
  • Lifts flats both horizontally and vertically with Vertical Lift Bail
  • 3:1 design factor
  • ASME B30.20 BTH-1 Design Category B Service Class 3
