Southworth

Spring-Operated Pallet Lifters - Pallet Pal®, 43-5/8" L x 43-5/8" W, 4500 lbs. Cap.

Model: MK836

Mfr. No.: 4431283

  • Spring-Operated Pallet Lifters - Pallet Pal®, 43-5/8" L x 43-5/8" W, 4500 lbs. Cap. Auto-Cam

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$35,828.46 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Platform Dimensions

43-5/8" L x 43-5/8" W

Capacity

4500 lbs.

Raised Height

28"

Lowered Height

9.5"

Frame Material

Stainless Steel

Weight

500 lbs.

Country Of Origin

United States

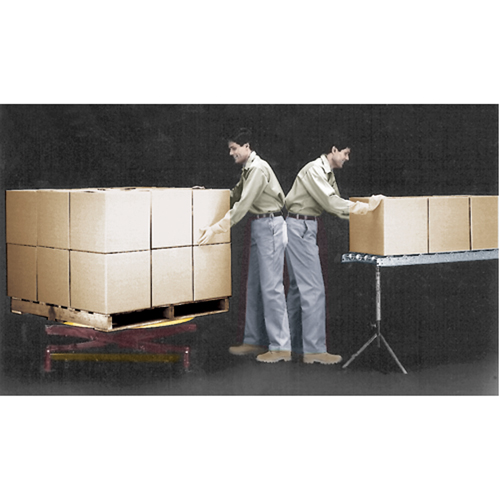

  • Speeds loading and unloading of pallets, reduces the danger of fatigue and injury. This lifter is a rugged turntable-equipped platform which lowers and raises the load as weight is applied or removed so that loading/unloading can be done at a convenient height. Reduces time and effort required to load or unload pallets. Load height adjusts automatically, eliminating the needs for controls or operator involvement. Heavy-duty springs are calibrated to bring pallets to the most convenient working height. Built-in fork pockets allow for relocation by fork truck and increase stability. Travel height ranges from 9 1/2" to 28". Designed to handle loads up to 4500 lbs. 43 5/8" diameter rotating ring, 45 1/4" L x 43 5/8" W frame. Available in various spring combinations, in powder coated steel or stainless steel construction.; ; Note: Springs are precisely calibrated and will work properly only within the load weight and height ranges selected. Selection based on higher or lower than actual weight will result in restricted travel capabilities. Should requirements change, lifter can be adapted in the field by simply changing spring combination
